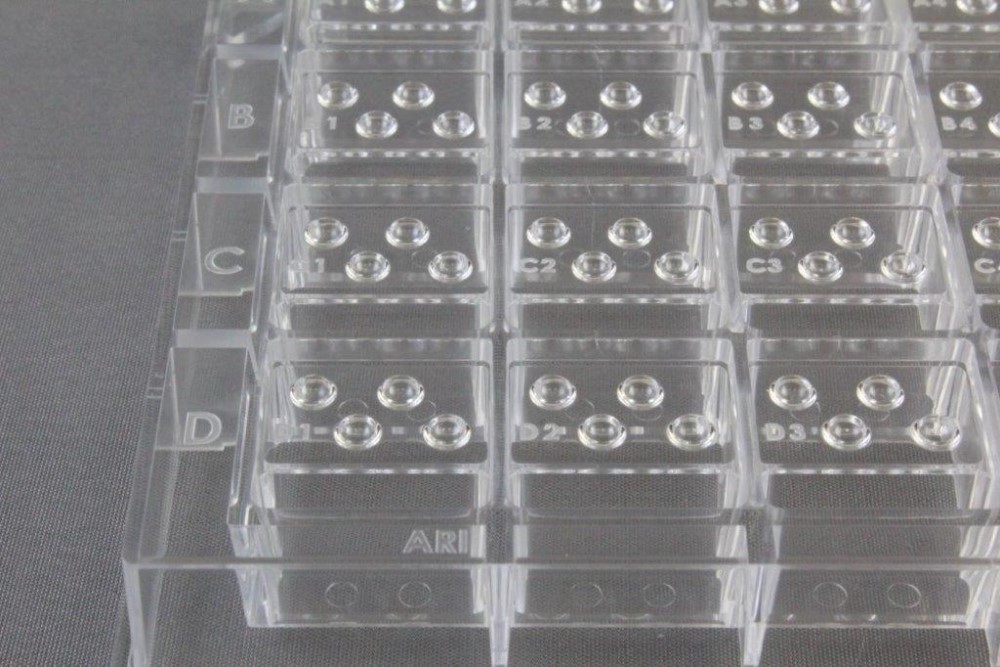

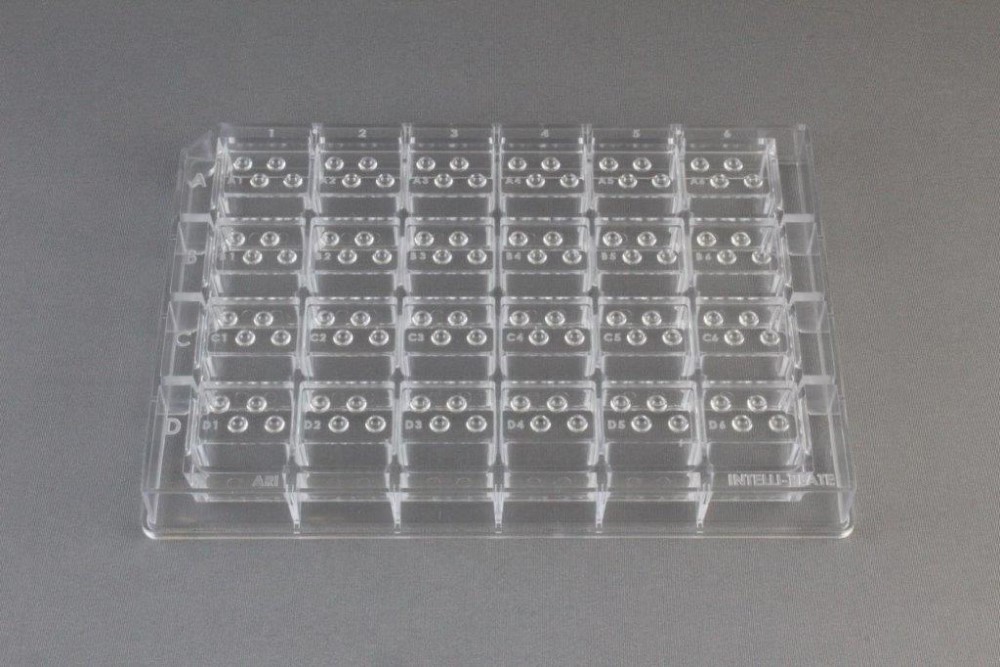

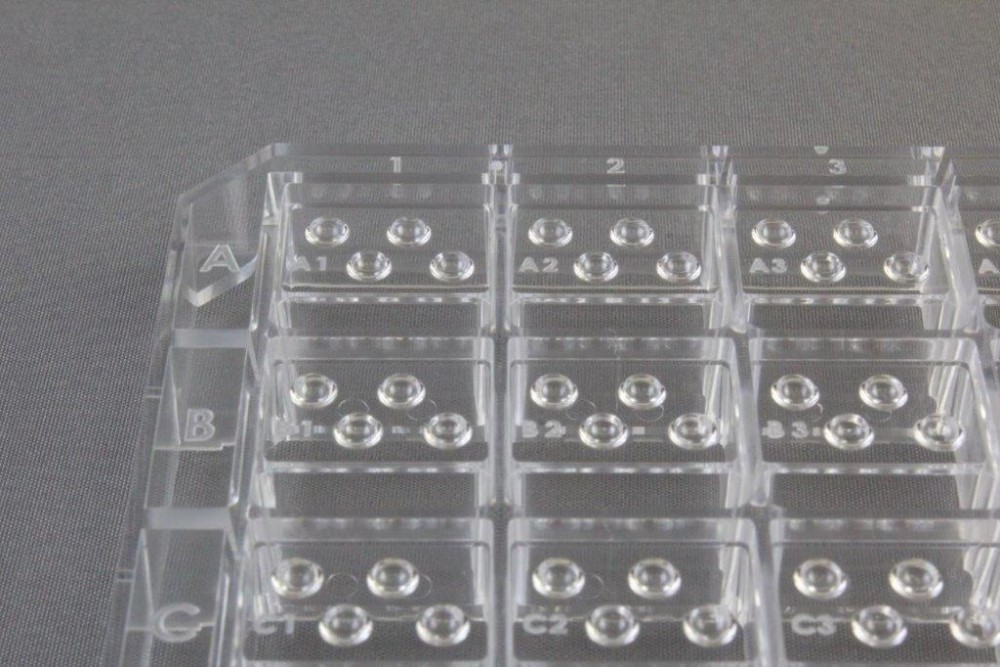

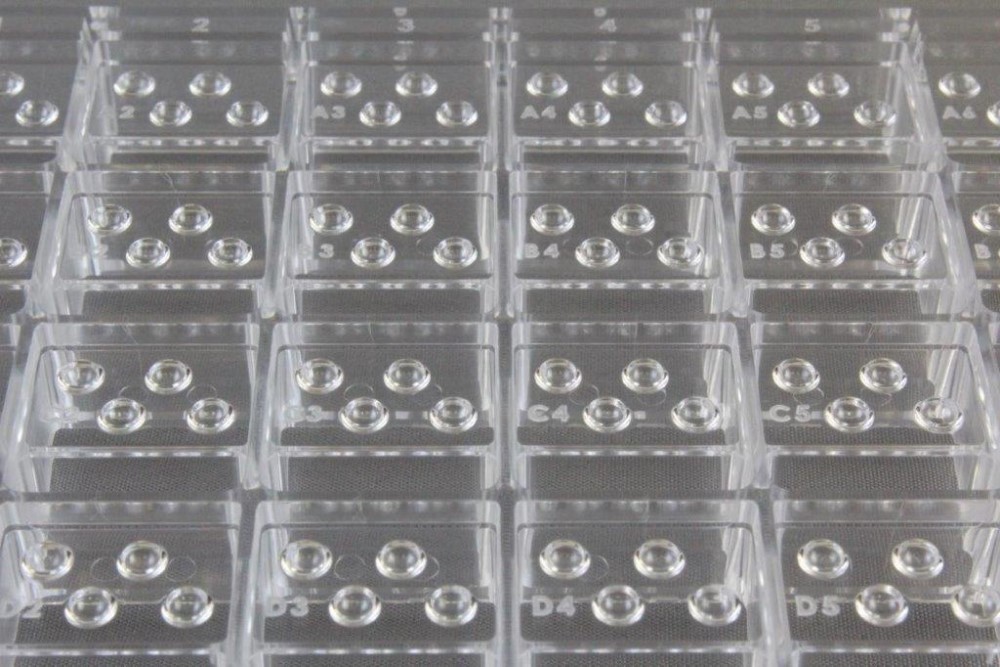

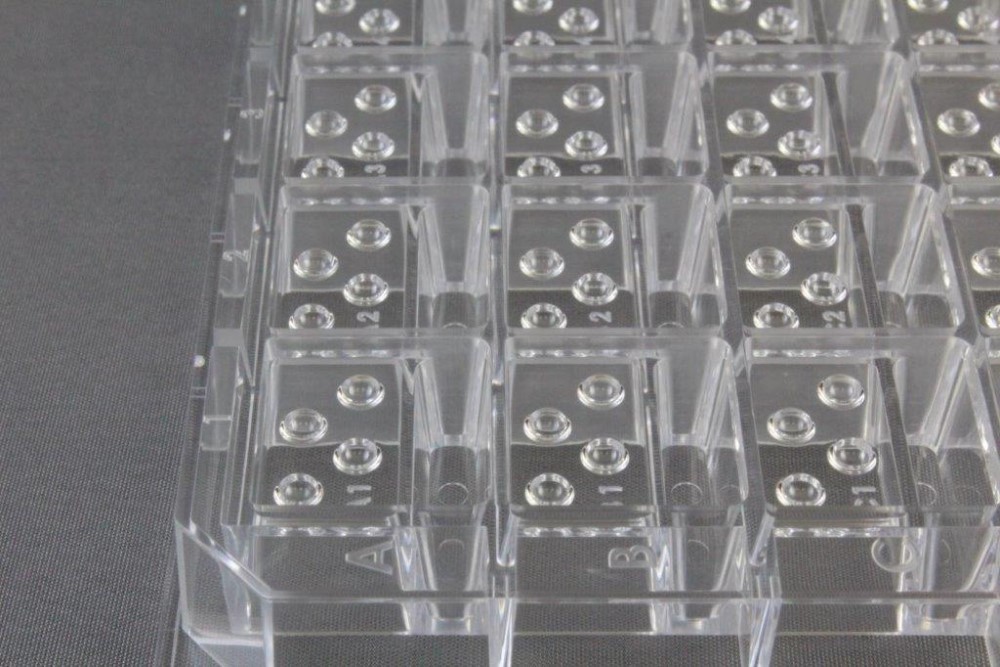

Intelli-Plate 24-4 (Art Robbins Instruments)
Applications
- Sitting drop crystallization
Features
- 4 drop wells per reservoir
- Setup by hand or dispenser, such as the Crystal Gryphon
- SBS microplate footprint
- Ideal for optimization and larger volumes
- Alphanumeric labeled drop wells visible under microscope
- Plate material: Polystyrene
Description
The Intelli-Plate 24-4 (Art Robbins 102-0004-00) is a 24 well sitting drop plate for crystallization screening and optimization. It features 4 reagent wells along the y-axis (A-D) and 6 reagent wells along the x-axis (1-6). The reagent reservoir is typically filled with 250 µl and the maximum reservoir volume is 650 µl. The 4 drop wells are arranged at the top of each well and can hold up to 5 µl. The diameter across the top of each of the four individual sample drop wells is 0.104 inches. Plates are made of polystyrene.
The plates can be sealed using HR3-609 Crystal Clear Sealing Film (100 pack), HR4-506 Crystal Clear Sealing Tape (3 inch x 55 yard roll, without cutter) or HR4-521 ClearSeal Film™ (100 pack).
The height of the Intelli-Plate 24-4 is 0.560 inches.
Click to Zoom In
CAT NO
HR3-138
NAME
DESCRIPTION
10 plate case
PRICE
$86.00
cart quote
CAT NO
HR3-114
NAME
DESCRIPTION
40 plate case
PRICE
$320.00
cart quote
Support Material(s)
Intelli-Plate 24-4 drawingRelated Item(S)
- ClearSeal Film™ and Applicator
- Crystal Clear Sealing Tape
- Crystal Clear Sealing Film
References
