Products > Crystallization Plates, Hardware & Accessories > 48 Well Crystallization Plates > VDX48 Plate with sealant
VDX48 Plate with sealant
Applications
- Hanging drop crystallization
Features
- 48 well plate with raised cover
- Sealant applied to 48 wells, ready to seal with cover slides
- Compatible with 12 mm diameter circle cover slides
- Optically clear plastic
- 128 mm x 85 mm microplate footprint
- Compatible with UV crystal imaging when used with HR3-277 or HR3-279 – 12 mm x 0.22 mm Siliconized circle cover slides
Description

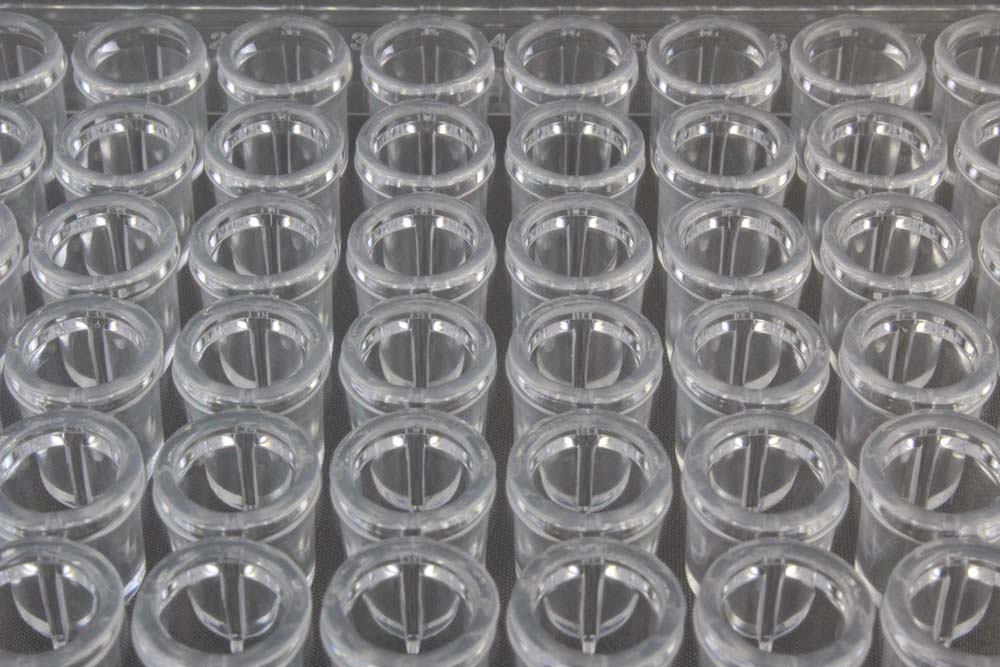

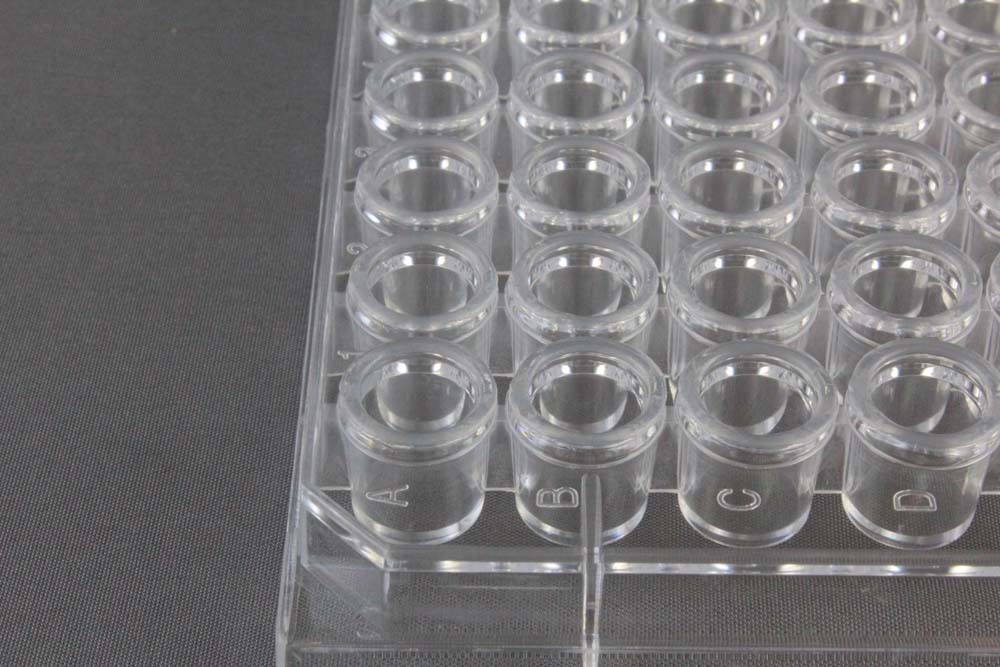

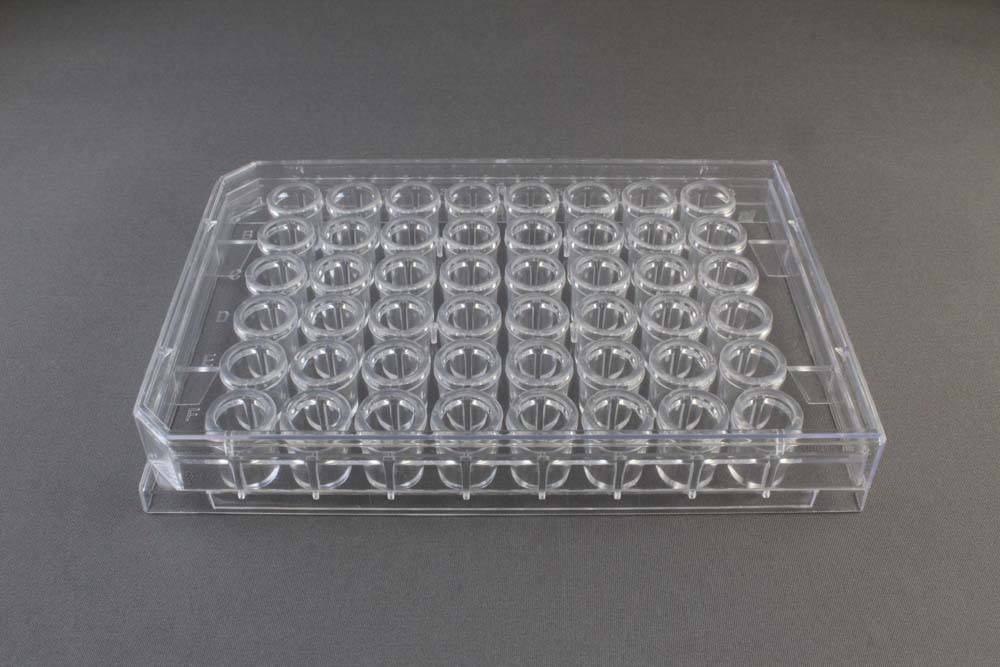

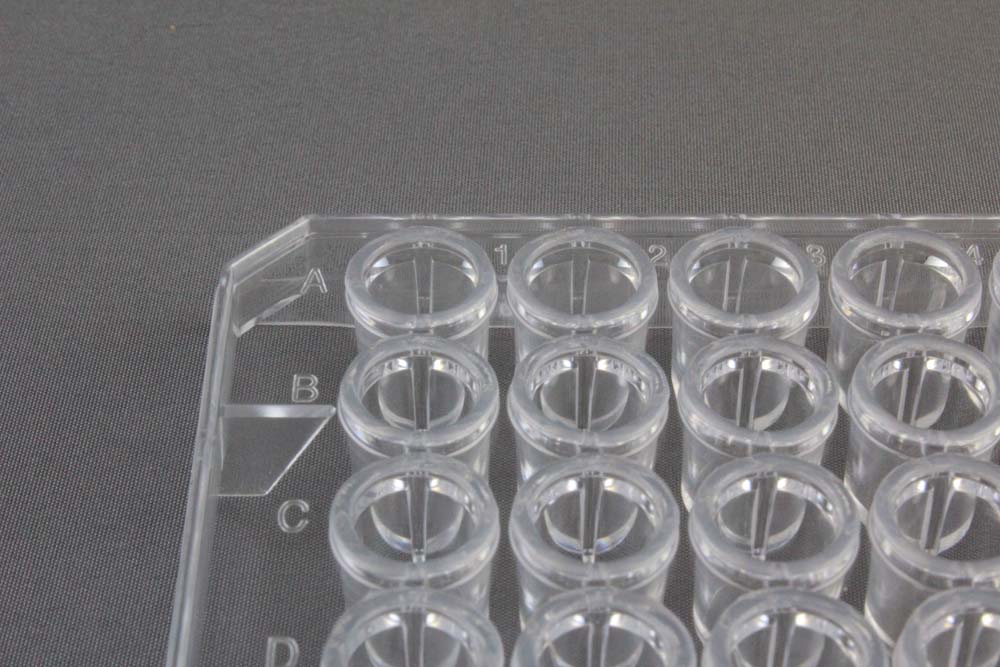

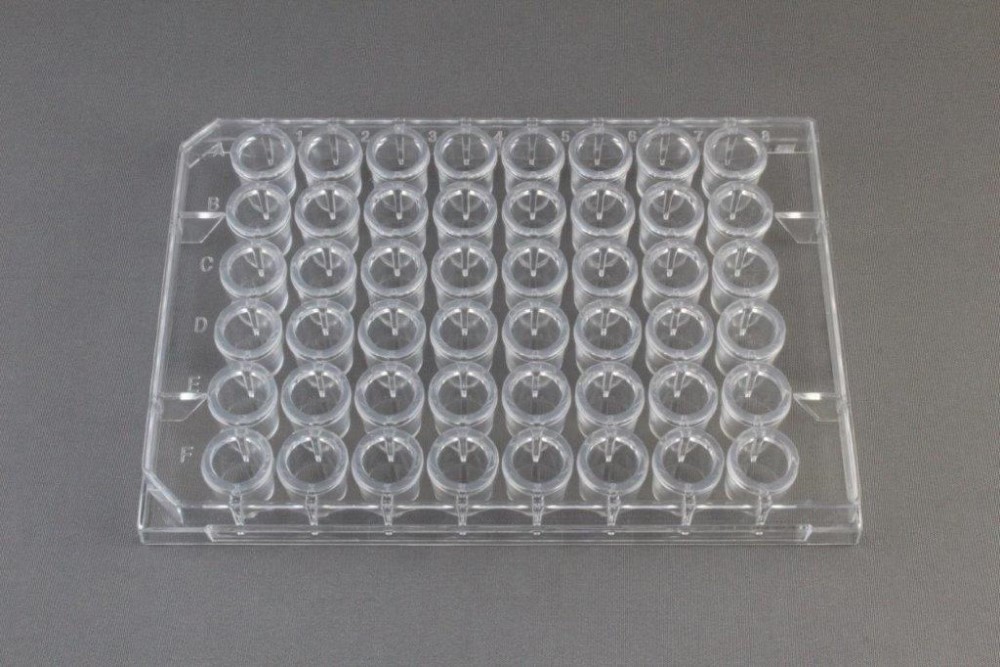

48 well plate with sealant for hanging drop vapor diffusion crystallization with a microplate footprint. Stackable, optically clear plastic, 48 well plates with raised covers (to allow room for cover slides) and flat bottoms for exceptional optics. Raised, wide rings around each reservoir (well) minimize cross contamination and allow each well to be individually sealed with 12 mm diameter circle cover slides. Plates are individually wrapped and supplied with applied sealant. The microplate footprint is space-saving and compatible with automated liquid handling systems.
Approximate dimensions: 128 mm x 85 mm
Approximate well ID: 9 mm
Typical well volume: 100 to 300 µl
Click to Zoom In
CAT NO
HR3-275
NAME
DESCRIPTION
50 plate case
PRICE
$435.00
cart quote
Support Material(s)
HR3-275 VDX48 Plate TemplateRelated Item(S)
- 12 mm Siliconized Glass Cover Slides
References
1. Cyclic olefin homopolymer-based microfluidics for protein crystallization and in situ X-ray diffraction. Emamzadah et al, Acta Cryst. (2009), D65, 913-920.
